What is MOTOTRBO, and how can it benefit your organisation?

MOTOTRBO combines the best of two-way radio with digital technology to bring you increased capacity, clarity, spectral efficiency and integrated data applications. With an open versatile portfolio of portable and mobile two-way radios as well as accessories, MOTOTRBO offers an open, standards-based solution that is both cost-effective and easily tailored to meet the communication needs of your business.

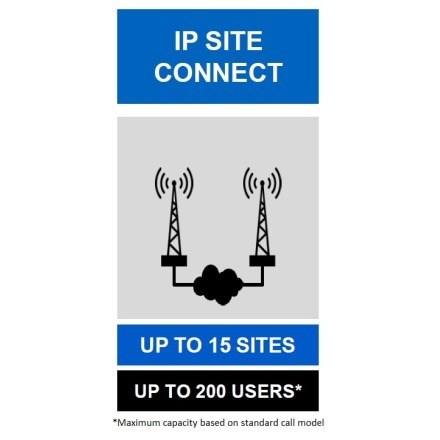

IP Site Connect

The IP Site Connect digital solution uses the Internet to extend the coverage of your MOTOTRBO communication system no matter where you’re located. You can communicate easily among geographically dispersed locations across the city, county or country.

You can create wide area coverage and automatically roam from one coverage area to another with no manual intervention. Or you can enhance coverage at a single site like a high-rise building that contains physical barriers. IP Site Connect enables you to extend the voice and data communication capability of your workforce beyond the levels two-way radio has achieved before. This means dramatically improved customer service and increased productivity.

Up to 15 sites can be connected using a standard IP network. Sites can be widely separated – in different counties or even different countries, allowing you to communicate across borders to keep your entire workforce connected.

With the RDAC tool (Repeater Diagnostics And Control), you can access all sites remotely for maintenance, upgrade and configuration. Adding a new site is easy: just equip the new repeater on the IP network.

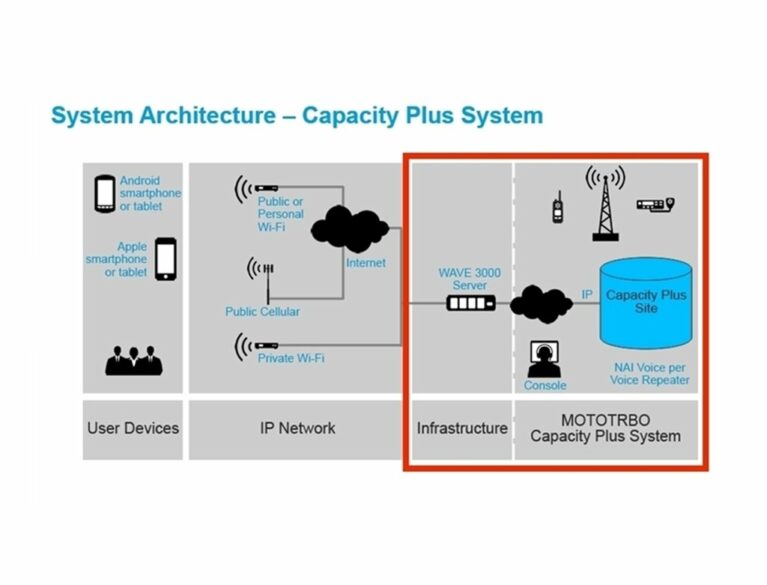

Capacity Plus

With Capacity Plus, you can further expand the capacity of your MOTOTRBO two-way radio system.

Capacity Plus is a scalable, single-site trunking solution that enables up to 1600 MOTOTRBO radio users to share both voice and data communication on the same system. Ideal for resorts, hotels, hospitals, warehouses, manufacturing plants and other medium to large single-site facilities.

Capacity Plus allows your work force to quickly and efficiently share a large amount of business-critical communication resulting in increased productivity for your business.

Capacity Plus will enhance the radio system operation by allowing multiple groups to be used over a smaller number of channels. The channels are a pooled resource for calls & thus provide a far more efficient way of utilising the channels available. It is therefore possible to easily add groups to your radio system & for each of these groups to operate independently.

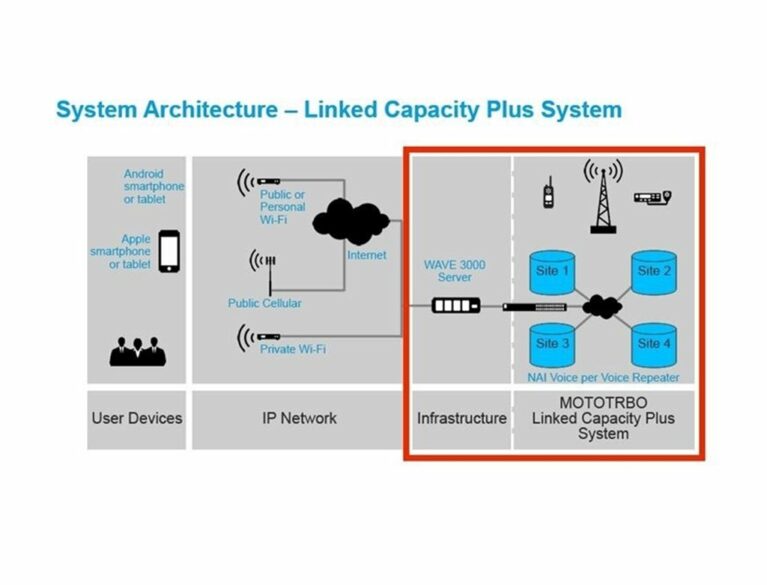

Linked Capacity Plus

If you need to communicate to a large field force across a wide area with a scalable, easy-to-use system, then Linked Capacity Plus is your cost-effective solution.

Leveraging advanced repeater software, it is available in both single-site and wide-area configurations. Whether crews need to talk to each other in the field or back at the office or they need to use data applications such as text messaging, location tracking or work order tickets, Linked Capacity Plus makes their work safer and their work day more productive.

Linked capacity plus allows up to 1600 MOTOTRBO users per site, and up to 15 sites to share both voice and data communication on the same system.

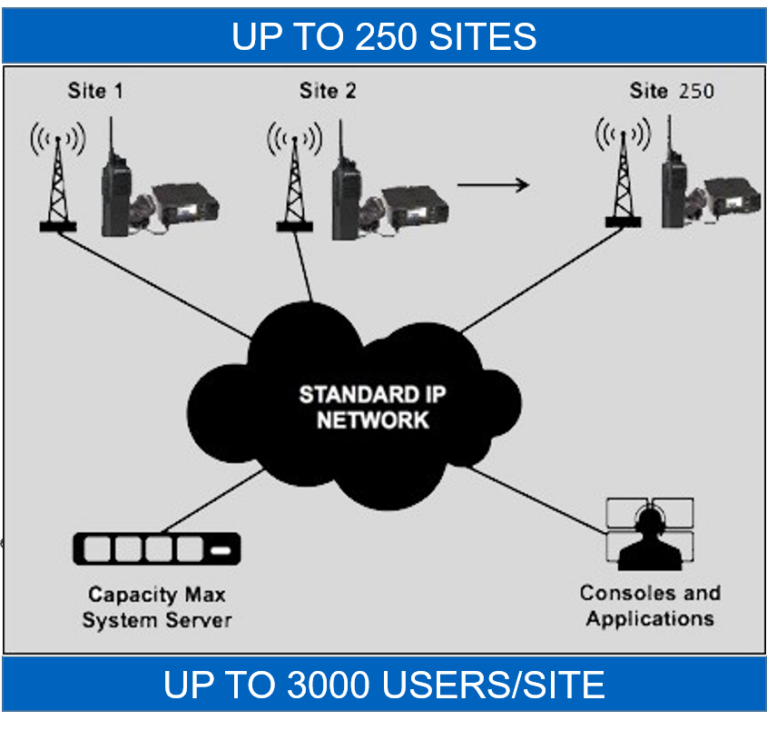

Capacity Max

Capacity Max is the newest MOTOTRBO trunking system delivering a highly scalable, feature rich and secure solution. Powerful management tools offer complete system control from a single workstation. The system can run in one of three modes including an ETSI DMR Tier III compliant operation offering open standard technology that is globally supported.

Security is a core component of Capacity Max and all voice, data and control traffic within the IP network is encrypted and all radios securely authenticated. There is remote disable and re-enable activation of devices, offering complete security if a radio is misplaced or stolen.

Capacity Max offers smooth scalability, making it easy to grow the system to meet growing demand. The system supports up to 250 sites with up to 3,000 users per site. Up to six additional data repeaters per site dedicated to support intensive data use for texting, GPS location updates and other applications such as personnel management and alarm notifications.

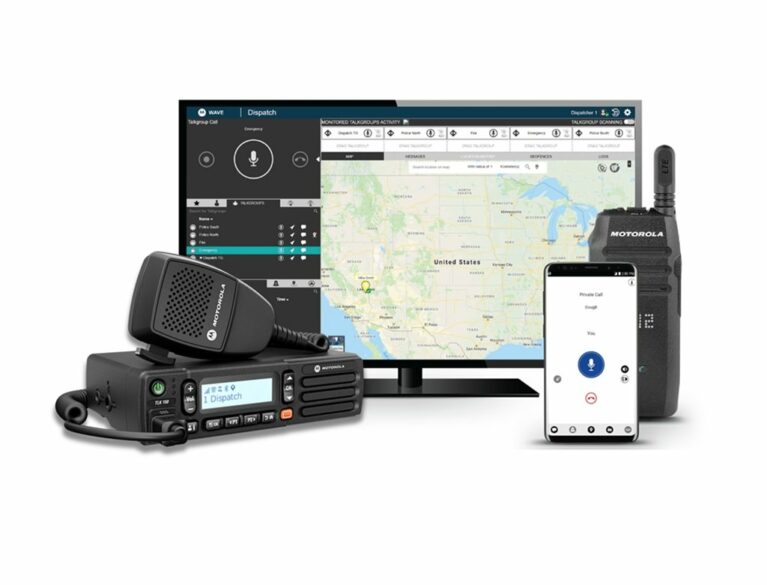

Wave PTX

Push-To-Talk (PTT) is no longer only for two-way radios. Group communication can now include those who rely on smartphones and broadband devices as well as two-way radios.

WAVE PTX is a network independent multimedia communication subscription service that instantly connects your team at the push of a button.

With the variety of connection options to the WAVE PTX system, there is a great scope of deployment possibilities. From an app on a mobile phone, a Motorola radio or mobile, to an well featured Dispatcher, the WAVE PTX platform covers many requirements for communication.

Combine the broad coverage of a Europe-wide 3G/4G network with the ease of two-way radio communications. The WAVE PTX radios will automatically switch to the strongest network available to ensure reliable communications and will seamlessly roam as the user moves between countries. Manage talk groups and subscriptions in real time. Increase coverage, connections, and productivity without expanding infrastructure.
